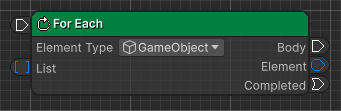

ForEach

This is a node that executes processing while outputting the elements of IList<T> in order.

Properties

Property name Type Description
Input port InputExecutePort Executed by connecting with ExecuteWire or TransitionWire
Element Type SerializableType Element Type
List InputDataPort<Element Type> List input port
Body OutputExecutePort Executes the destination node during the loop.
Element Element Type Current element value
Completed OutputTransitionPort All elements have been executed or the execution node from Body is [Break]({ Transition occurs when {< relref “breaknode.md” >}}) is reached.

Accepting flow termination nodes

  • Break
    Finishes execution and transitions to Completed.
  • Continue, Exit
    Finishes execution and begins execution of the next element.
